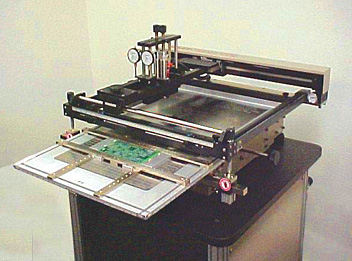

Opti-Print 1616PD-F
Specifications:	Opti-Print 1616PD-F
Machine Repeatability	± .00025"
Maximum Printing Area	16" x 16"
Maximum Frame Size (OD)	23" x 23"
Maximum Off-Contact	1"
Maximum Cycle Speed	10-12 seconds
Print Speed	0-14"/second
Squeegee Head Assembly	Pivoting
Squeegee Pressure	80 lbs. max
Squeegee Drive Force (X)	315 lbs.
Squeegee Holder Size	7" Standard
Tooling Plate	Cast Ground Aluminum
Platen Size	21" x 22"
Platen Movement X and Y	1"
Platen Rotation	±8 degrees
Air Consumption	100 PSI @ 1 CFM
Average Set-Up Time	5 minutes or less
Dimensions:	Opti-Print 1616PD
Overall Dimensions	18.5" High x 32" Wide x 30" Deep
Shipping Weight	340 lbs.
Options:	Opti-Print 1616PD
Vacuum Base (includes vacuum source)	Yes
Universal Single-Side Tooling	Yes
Universal Magnetic Double-Side Tooling	Yes
Squeegee Clamp Sizes	7", 11.5", 12", 14", 16"
Metal Squeegee Blades	7", 11.5", 12", 14", 16"
Adjustable Angle Metal Blades with Paste Deflectors	Yes
Vision-Aided Set-Up with CCTV and Color Monitor	Yes
Heavy-Duty Printer Stand	Yes



N/A=Not Applicable

Specifications subject to change without notice
